| Products -- KVM Console - AK Series |
| |

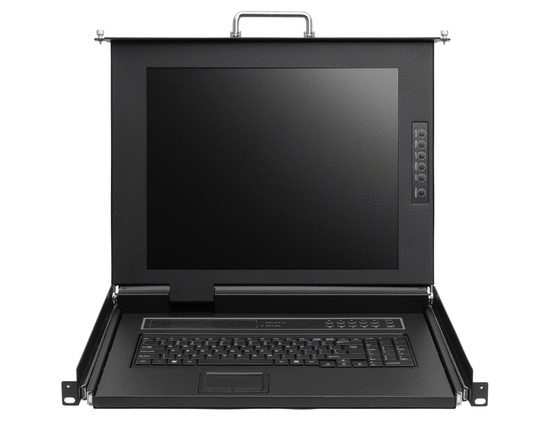

AK - 1708-IP
• 17“ LCD Monitor with LED Backlight
• 8 Port KVM-Switch USB / PS/2
• Depth 559mm only |
|
| |
|
|
|
| |
AK-1708 is a 17“ Monitor-Keyboard-Drawer with LED backlight. A value keyboard with number block and touchpad and the integrated 8 Port Combo VGA KVM-switch are completing the external design. The casing conforms the 1U Standard, is easily installed and mountable with the included mounting kit.
The device is outfitted with an IP-module. |
| |
Specifications:
• The corresponding dongle are included with delivery.
• Cascadable up to a port capacity of 128 ports by tree-chaining
• Computer selection by push buttons, Keyboard -Hotkeys and OSD-Menu
• On-Screen-Display und system notification as a Pop-Up
• Automatic Power ON/OFF pushing the console back to the rack
• Supports all USB suitable operating systems: for example DOS, Windows Series / Server 2008 / Server 2013, Linux, MacOS, etc.
• Numeric LED status indicators for clear display of port status |
| |
Properties:
• 1U 17“ LCD console, 571mm total depth
• Stepless, adjustable angle from 0 to 105° with high quality torque hinges
• Easy one-man-assembly with the included installation angles
• Integrated 8-port Combo VGA KVM-switch
• Adjustable depth: 560mm to 900mm (Standard)
• Chromed metal handle
• Practical knurled screws
• High graphic resolution, up to 1280 x 1024 with 60Hz |
| |
Keyboard variants:
Available in following versions: German (DE), US-English (US), UK-English (UK), French (FR), Spanish (SP), Italian (IT). Swiss / German (CH) and swedish / finnish (SWE/FI)
Versions available on request: Turkish (TK), Russian(RU) |
| |
 |
|
